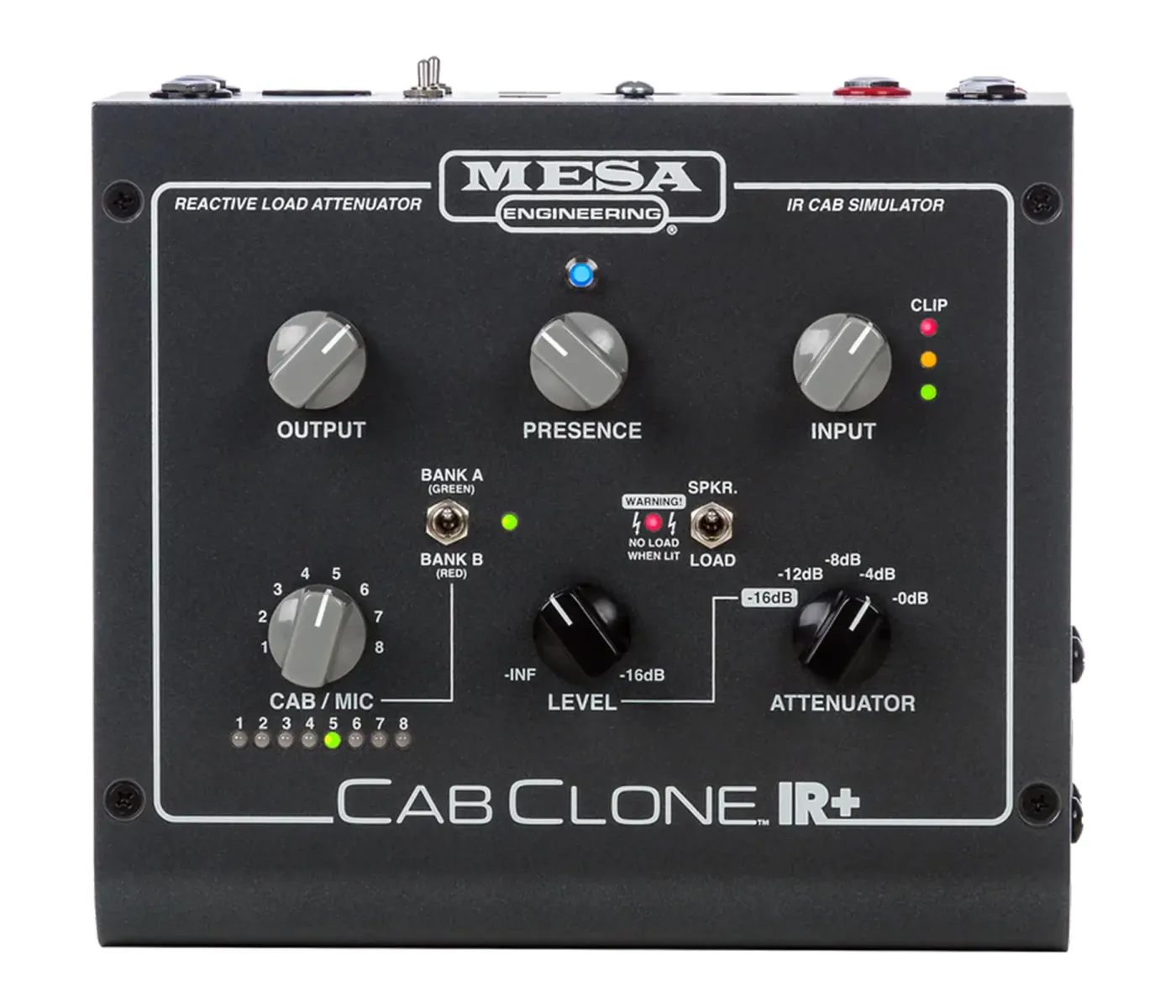

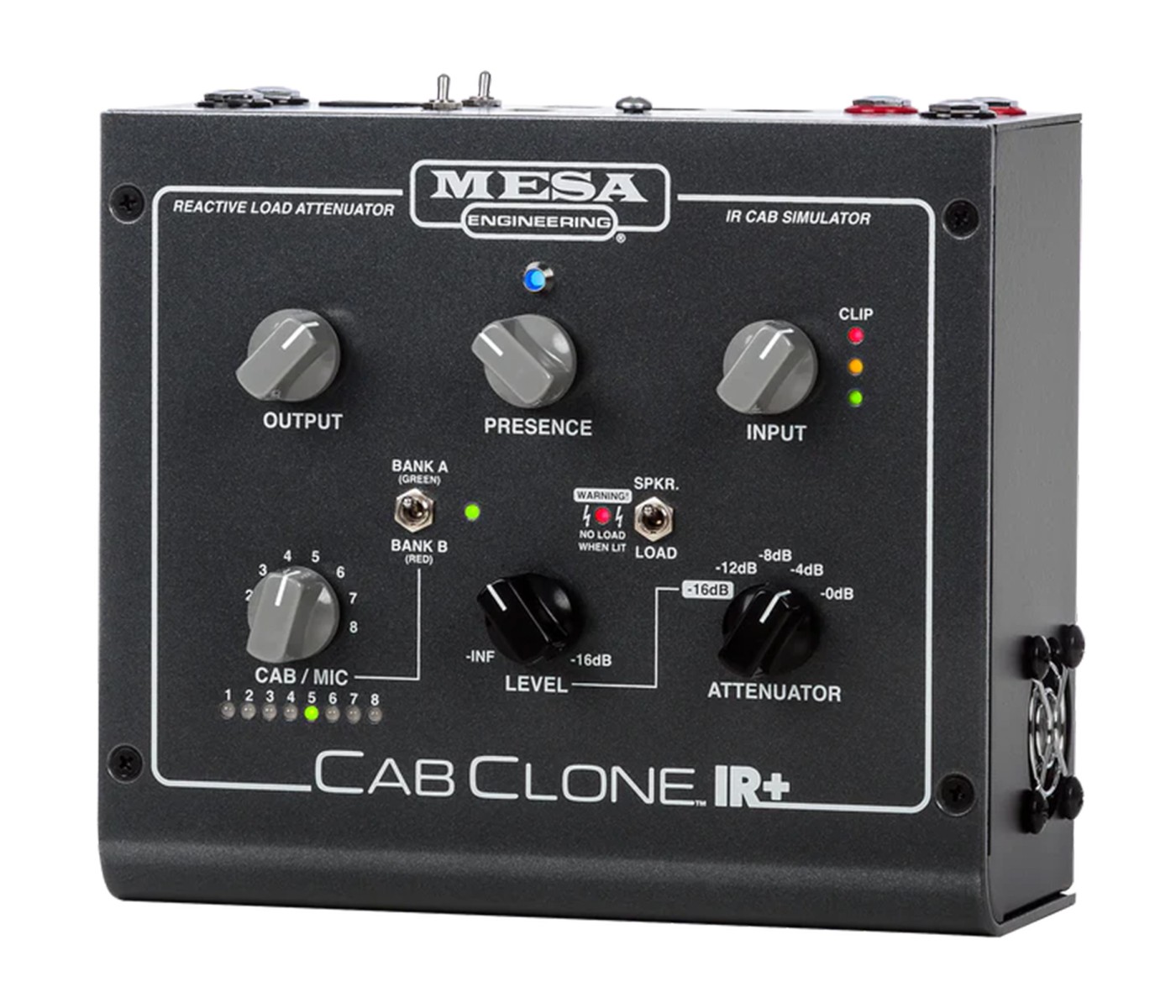

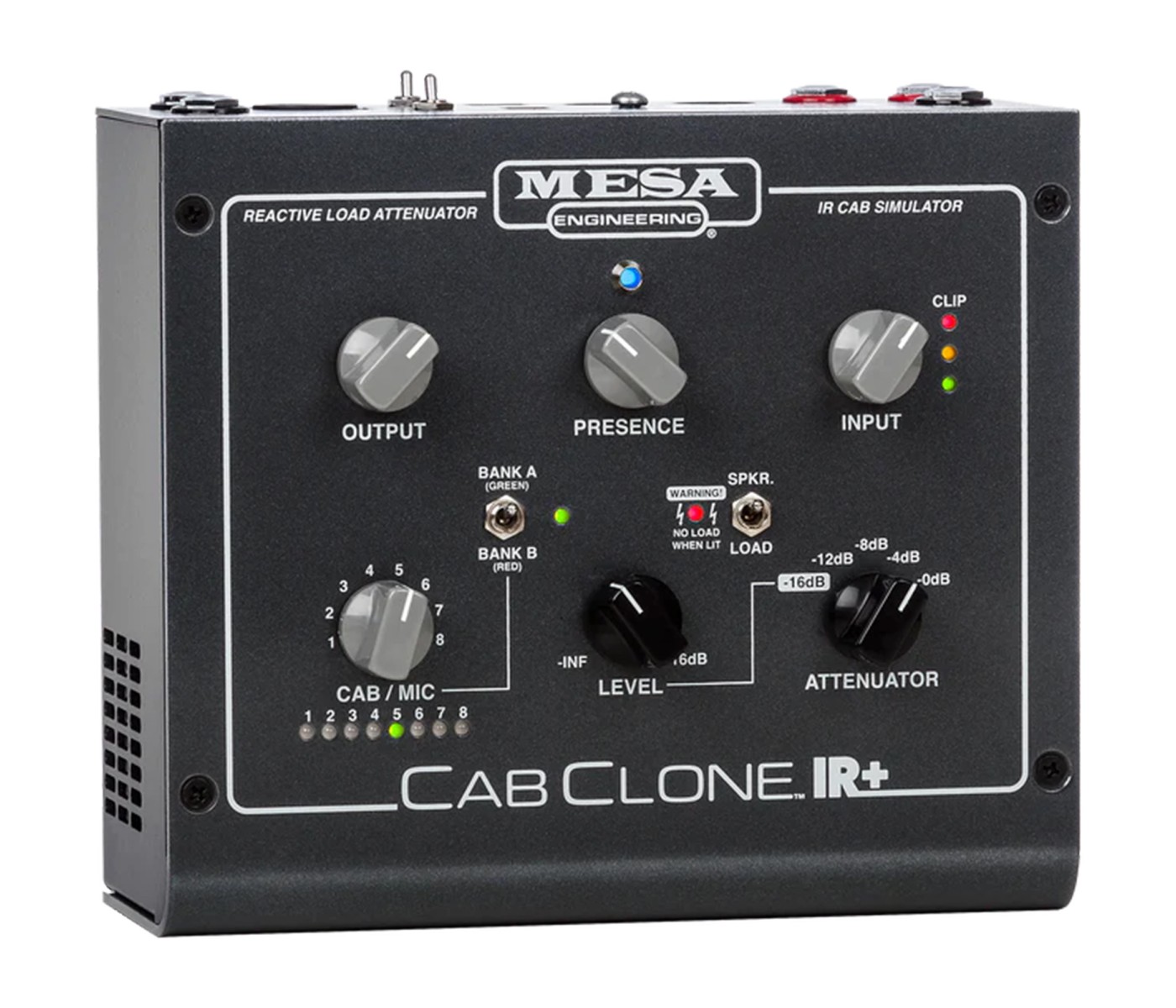

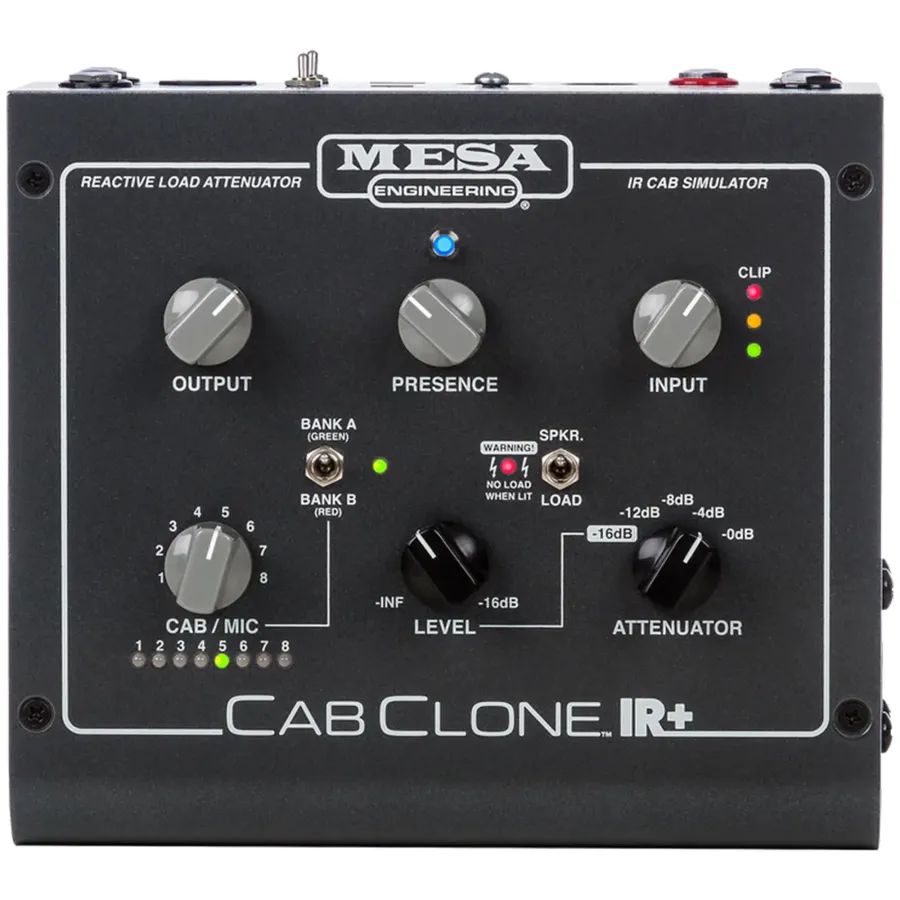

Mesa Boogie AC.CCIR8X CabClone IR Reactive Load Attenuator & IR Cab Simulator - 8ohm

Cabinet Simulator and Reactive Load Box with 16 Factory-loaded Cabinet Impulse Responses, Third-party IR Compatibility, Line-level Inputs and Outputs, Attenuator, Level Output Control - 8 ohms

Get the sound of Mesa/Boogie’s renowned speaker cabinets in a portable unit with the Cab Clone IR+ reactive load box and IR cab simulator, now available at Sadek Music. Featuring four Mesa/Boogie cab presets in 16 miking configurations and the ability to upload third-party IRs, the Cab Clone IR+ gives you access to limitless cab combinations for unmatched tone-crafting. Take it onstage to achieve cranked amp tones at venue-appropriate volumes, use it in the studio for perfect guitar recordings, or plug in headphones for silent practice that sounds just like an amp. The Cab Clone IR+ also includes an attenuation switch and level control for optimal output at any volume, giving guitarists maximum flexibility. Experience the convenience of a cabinet simulator with the legendary Mesa/Boogie tone — a truly killer combination!

Take command of an epic cab arsenal

The Cab Clone IR+ is packed with 16 factory-loaded IRs taken from Mesa/Boogie’s deep roster of industry-leading guitar cabinets. You have instant access to the Rectifier’s distinctive mid-range punch, the Thiele’s beefy low-end, the Lone Star’s creamy harmonics, and the California Tweed’s smooth vintage voice. The Cab Clone IR+ features IRs of these classic cabs in two configurations: a “Live” configuration, recorded with a dynamic mic and ribbon mic combo, and a “Studio” configuration that swaps out the dynamic mic with a condenser mic for a more detailed “hi-fi” sound. A 2-bank A/B switch and 8-position “Cab Select” makes flipping between IRs a breeze.

Exceptional performance, live and in the studio

Guitarists at Sadek Music know there’s nothing more satisfying than the sound of a wide-open amp, but, in a small venue, that kind of volume can make your audience’s ears bleed and send them running towards the door. With the Cab Clone IR+, you can have that tremendous dimed tone, but at an audience-friendly volume. Just patch it into the venue’s console and let the sound guy match the level to the room. Still want to use your live cab for stage monitoring? No problem. Send an unprocessed signal to your amp in parallel from the live speaker cabinet output jack and get the best of both worlds.

Mesa/Boogie Cab Clone IR+ Reactive Load Box & IR Cab Simulator Features:

• Stunningly realistic IR cabinet simulator
• Output to recording interfaces, consoles, or headphones
• Load attenuation and level control for optimal output at any volume
• Four factory-loaded Mesa/Boogie cabinet presets: Rectifier, Thiele, Lone Star, & California Tweed
• Load third-party and custom IRs into the unit’s “Cabinet Library” via USB
• Sixteen miking configurations in “live” and “studio” styles

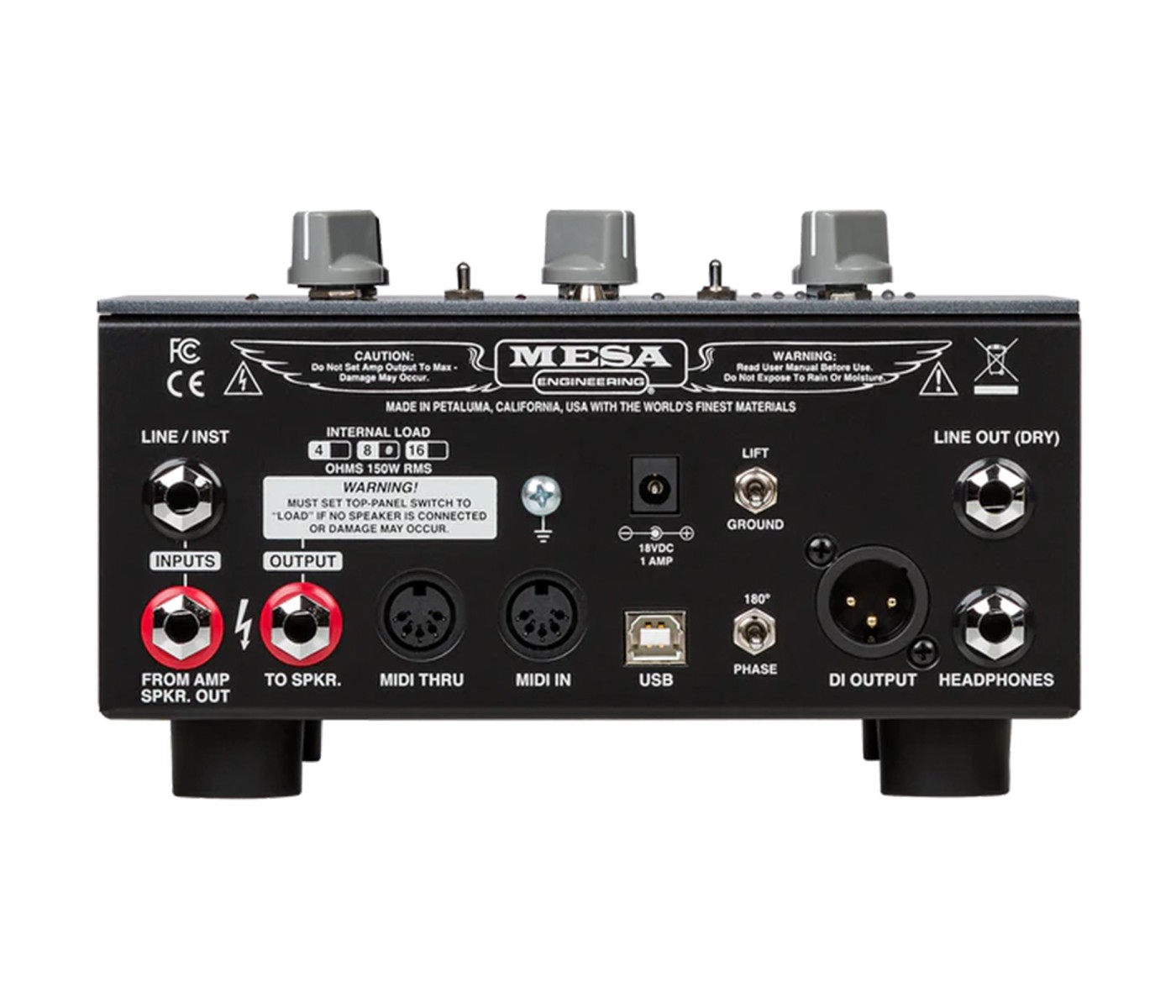

• Two 1/4” input jacks (From Amp Speaker Output and Line/Instrument In)
• One 1/4” “TO SPKR” live cabinet output jacket sends an unprocessed signal to your live speaker
• MIDI IN and THRU expand control of the unit
• Includes tall rubber feet that clear most handles for top-of-amp placement

Tech Specs

• Type:Reactive Load
• Power Handling:150W Max
• Impedance:8 ohms
• Attenuation:5-way switch: 0dB, -4dB, -8dB, -12dB, -16dB
• Ground Lift:Yes
• Polarity Switch:Yes
• Inputs:1 x 1/4" (Hi-Z/line), 1 x 1/4" (powered signal in)
• Outputs:1 x 1/4" (to speaker), 1 x XLR (DI out), 1 x 1/4" (dry line out)
• Headphones:1 x 1/4"
• Other I/O:MIDI In, MIDI Thru, USB Type B
• Features:16 x Built-in Cabinet IRs, Load additional IR Cabinets, Cabinet Library (USB)
• Power Source:18V DC power supply (included)
• Height:4.5"
• Width:7.5"
• Depth:6.62"
• Weight:4 lbs. 1 oz.
