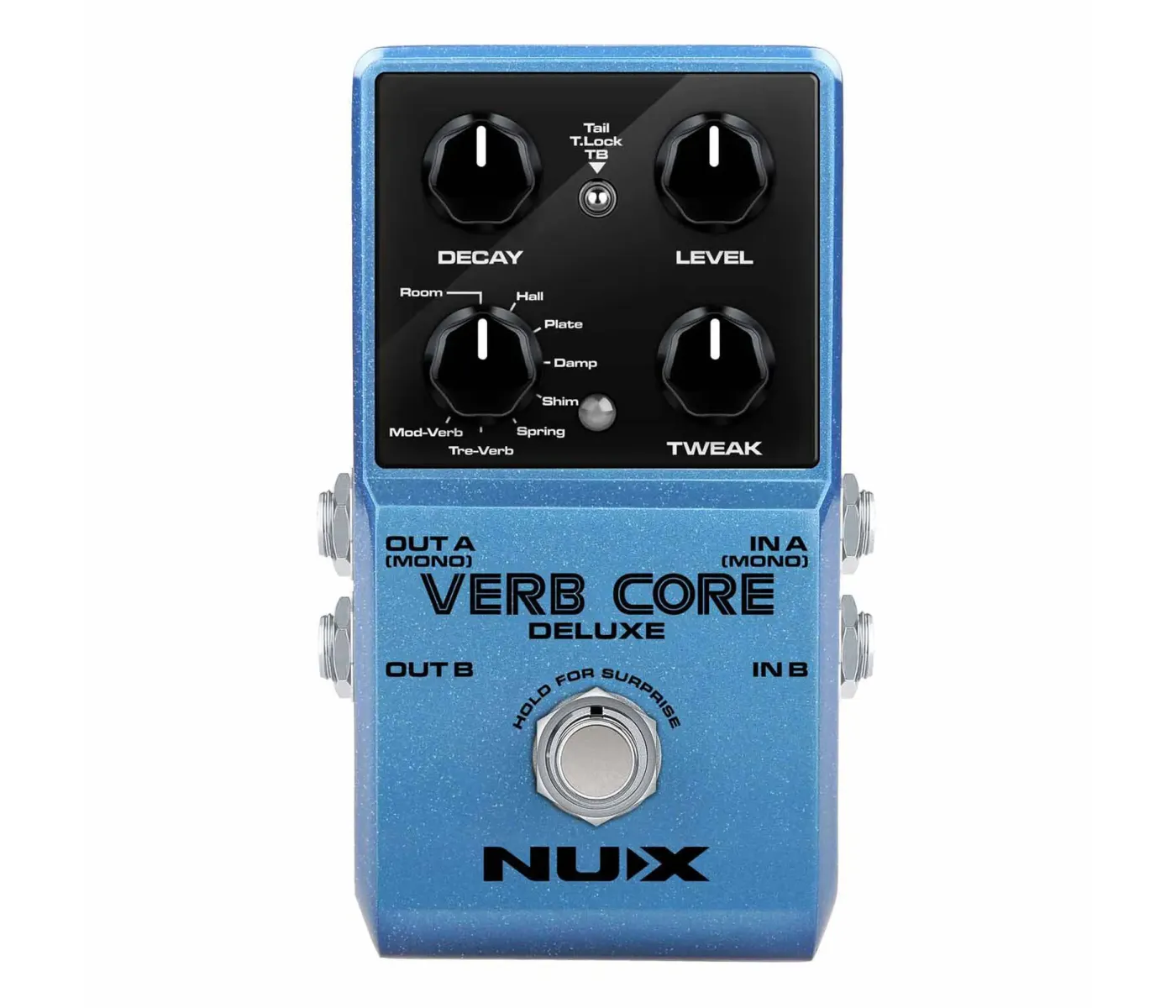

NUX Verb Core Deluxe Reverb Pedal Effects - 3 Years Warranty

Ambience in Motion

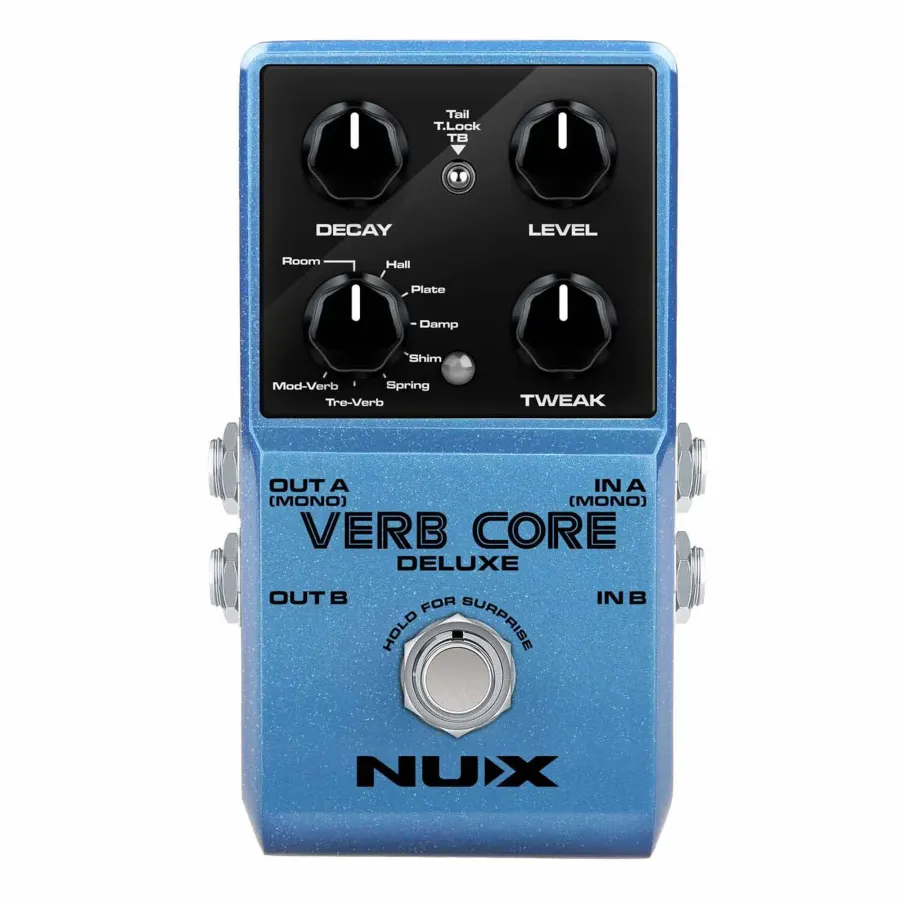

The NUX VERB CORE DELUXE is a reverb pedal with 8 different types including Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb and Mod Verb. You can select the reverb type by using the Type knob.

Room reverb simulates a smaller acoustic space. In such a room, many reflections are absorbed by soft materials, and the sound is reflected and sustained only by the walls (covered with wallpaper), windows and maybe some furniture. Room reverb is akin to the normal ambience we’re used to hearing in the real world.

Hall reverb is based on the legendary Lexicon 224 which was unleashed in 1978. It has a famously lush reverb tail which single-handedly defined the sound of an entire era. A large encompassing reverb with warm, organic decay.

Decay knob

Adjusts the length of reverb time. Adjusts the length of reverb time.

Level knob

Adjusts the wet/dry mixing level of reverb?from 0% up to 100% when you turn the knob clockwise.

Reverb Type knob

Selects the Reverb type.

Tweak knob

Adjusts a specific parameter for each reverb type.

Toggle switch

The Toggle switch is used to go between True/Buffer Bypass and our unique Tone Lock feature. Select Tail to set the pedal to Buffer-Bypass to keep the reverb spillover while you disengage the effect. TB means True-Bypass, there is no spillover while you disengage the effect. T.Lock means Tone Lock. The T.Lock (Tone Lock) function is a quick way to store and lock your current parameter setting to prevent accidents while on stage. After you set the parameters, just toggle the switch to T.Lock position, then the LED indicator will flash GREEN 2 times to store and lock the parameters. Then you can engage or disengage the effect by the footswitch worry free.

FOOTSWITCH & FS INDICATOR

Press once to engage/disengage the effect. While you engaged the effect, press and hold the footswitch can trigger Freeze function. (Hold For Surprise) While the effect is engaged, the FS indicator will show “Red”. While the effect is disengaged, the FS indicator will turn off.

I/O Jacks

The USB-C port is for firmware updates. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can perform firmware updates using DFU updater software.

In jacks

The audio inputs on the right side of this pedal are standard 1/4" jacks (mono/TS). Connect your guitar to the In (mono) audio input on the right side of your pedal using a regular 1/4" instrument cable. The pedal also accepts stereo signals using a pair of 1/4" TS cables?to provide a TURE STEREO output.

For the Mono/Stereo connection applications, please see below.

Out jacks

The audio outputs on the left side of this pedal are standard 1/4" jacks (mono/TS). Connect the audio output of your pedal to the next device in the signal chain, either with a single cable or with a pair of 1/4" cables if both inputs are used.

For the Mono/Stereo connection applications, please see below.

Features

• 8 reverb types in a compact enclosure.
• Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb, Mod-Verb.
• Freeze function.
• True-bypass or Buffer-bypass(Tails).
• Supports Stereo.
• Kill Dry.
• Low power consumption. (less than 120mA)
• Analog dry signal for low noise and zero latency.

Specifications

• Input Impedance: 1M?
• Output Impedance: 1k?
• Dynamic Range: 104 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power: 9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw: less than 120mA
• Dimensions: 122(L) X 72(W) X 47(H)mm
• Weight: 270g
