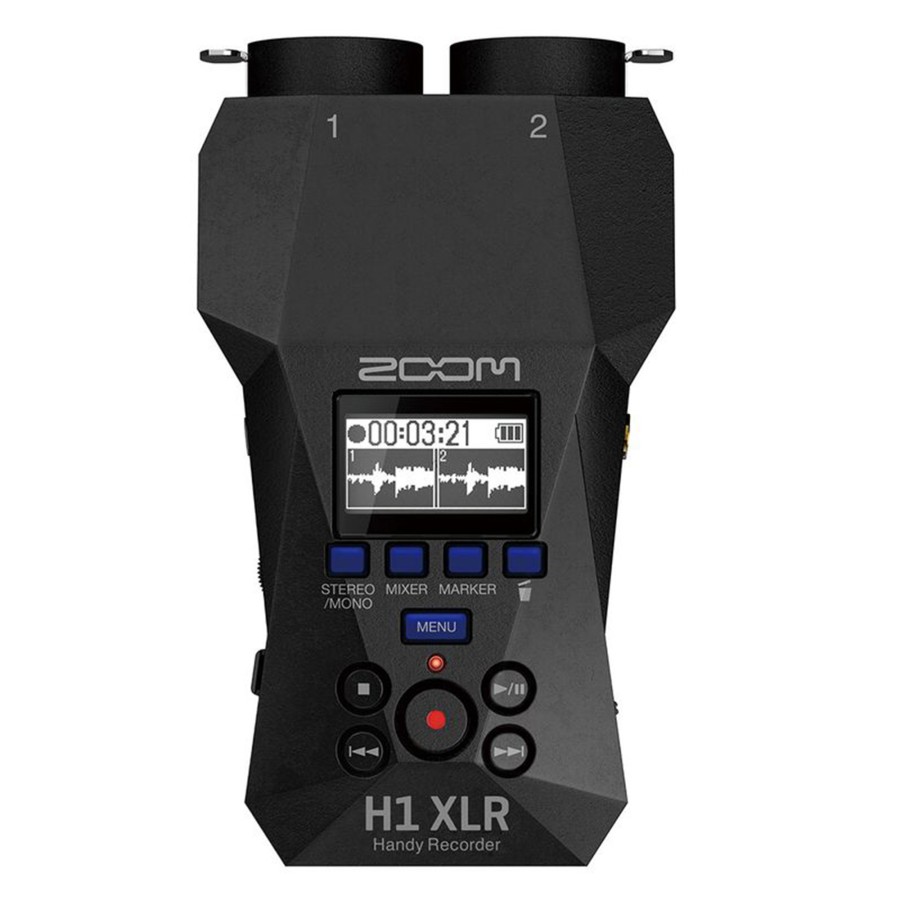

Zoom H1 XLR Handy Recorder

Go Anywhere, Record Anything

The H1 XLR is the recorder for creators who know no limits. Capture audio for video, direct feeds from mixers, song ideas and more.

Input Flexibility

Equipped with two locking XLR/TRS combo inputs the H1 XLR is ready to record microphones, stereo board feeds, instruments and more. The 3.5mm stereo input allows you to record on-camera mics, lavaliers, phones and other sources.

Never Worry About Gain… Again
Plug in, hit record, and capture your audio worry-free. With 32-bit float and dual AD converters, the H1 XLR's vast dynamic range preserves details in both quiet and loud recordings.

Ultra-Clean Preamps
The H1 XLR’s preamps give you crystal clear audio with a -122dB EIN and sample rates up to 96khz.

Line Level Like a Pro
Capture +4dBu professional line level signals to record clip-free audio from any mixer or line output.

Stereo or Mono

The H1 XLR can record both stereo and mono files depending on your application.

Accessibility

The H1 XLR is designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*

32-bit Float Audio Interface

Connect to a PC, Mac, iOS, or Android device and use the H1 XLR as an audio interface while simultaneously recording to the SD card.

Perfect Audio for your Mobile Video

Connect the H1 XLR to your mobile device via the USB-C port and record professional audio directly onto your phone's video. Perfect for video podcasts, live streams, and more.

The Sound Designer’s Companion

With 32-bit float recording, you can capture the roar of the loudest engines and the delicate whispers of nature in stunning quality.

FEATURES

Mic/Line Switch

Flip the switch from mic to line level without having to switch cables.

Built-in Mixer

Use the mixer to easily adjust each track’s audio level.

Waveform display

The high-contrast OLED screen makes it easy to navigate through the H1 XLR’s simple interface.The real-time waveform display lets you see your audio as it records.

Headphone Output

Use the 3.5mm headphone output for headphones or to connect directly to a camera.

Onboard speaker

Use the onboard speaker to listen to your recordings for quick reference as well as to utilize the accessibility functions.

High Capacity Storage

The H1 XLR supports SDXC cards up to 1TB to record days of audio.

Phantom and Plug-In Power

Record condenser microphones with phantom power or lavaliers with plug-in power.

Power Options

The H1 XLR can be powered by two AA batteries or via the USB-C port. This includes bus-power as well as external USB battery packs.

TECH SPECS

• 2-track 32-bit float recorder with Dual A/D Converters
• Clip-free recording with no need to set gain
• Records up to 96kHZ sample rate
• Voice Guidance accessibility for the visually impaired
• 2 XLR/TRS combo inputs with locking connector
• Hardware MIC/LINE input level select switch for each input
• Stereo ⅛" Mic/Line In mini phone jack
• Stereo ⅛" Phone/Line Output jack with dedicated volume control
• ¼ | 20 Tripod mount
• Real time waveform display on OLED display
• Built-in mixer to adjust each track’s audio input level
• Built-in speaker for quick reference playback and voice guidance accessibility
• 32-Bit Float audio interface for PC, Mac, iOS, and Android devices via USB-C port
• Use as an interface and record to SD card simultaneously
• Records directly to microSDHC and microSDXC cards up to 1 TB
• 10 hours of battery life on AA battery (2x) or USB-C Bus Power
