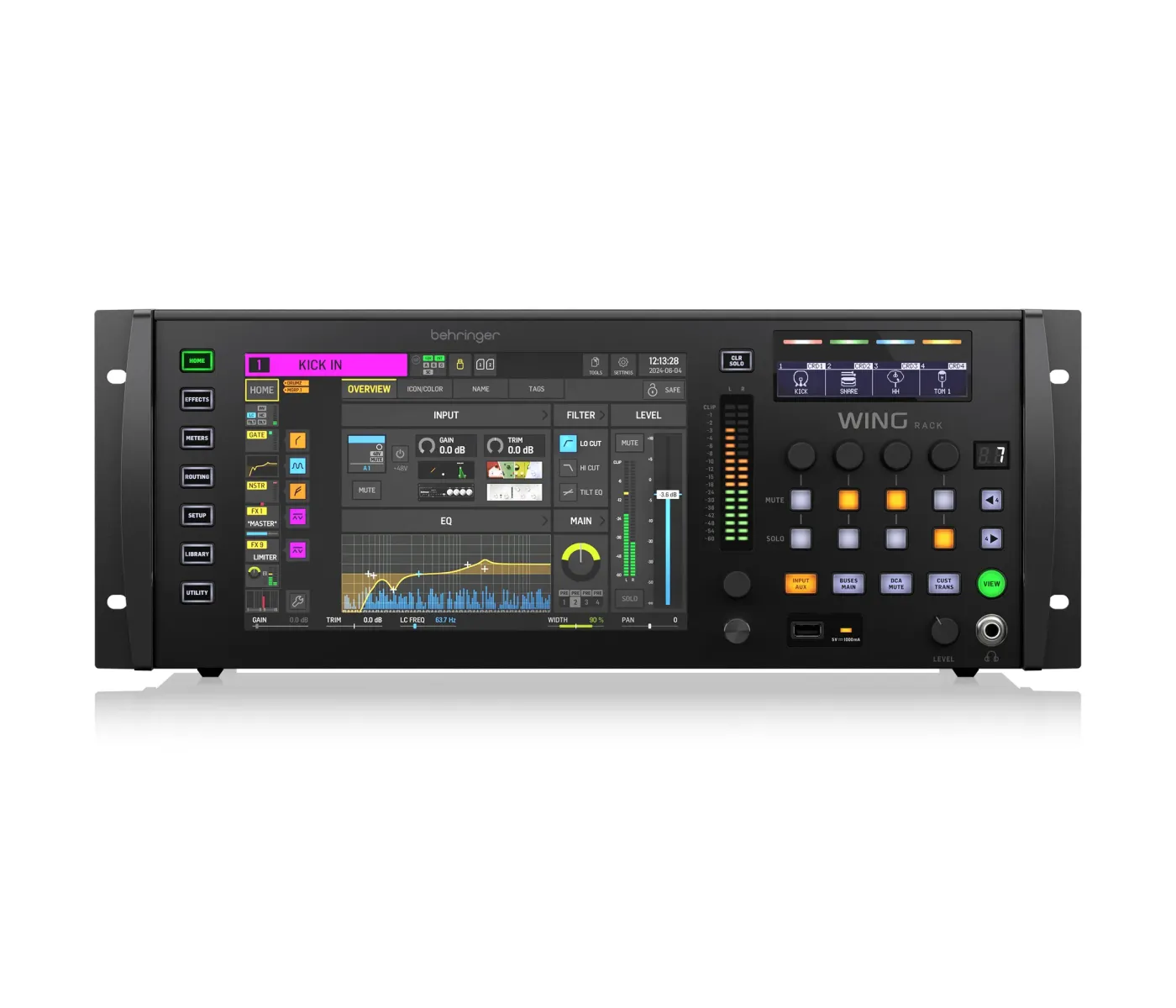

Behringer WING RACK 48 Channel Digital Mixer
- Brand: Behringer
- Product Code: WING RACK
- Availability: In Stock
-
AED 4,999.00
The Behringer WING Rack, available at Sadek Music, packs the processing power, channel count, effects, expansion slots, and digital I/O of the full-size WING console into a compact, rackmountable unit. Complementing its near-limitless digital connectivity are 24 award-winning Midas Pro preamps, making the WING Rack a powerful all-in-one solution—even without a separate stage box. Control every function and parameter via the responsive 10.1-inch capacitive touchscreen, or take command remotely from a mobile device or desktop. The intuitive Sources paradigm lets you focus on your audio sources rather than the technical details of mixing. Record up to 64 channels directly to dual SD cards, expand with optional Dante support cards, or use the built-in 48-in/48-out USB audio interface to record straight into your DAW. IEM users will appreciate the four additional rear-panel stereo outputs and high-performance headphone amplifiers. With 16 true-stereo processors featuring Standard and Classic modeled effects, the Behringer WING Rack stands as a top-tier digital mixer that elevates any small-scale live sound or studio setup.
WING Rack — made for the way you want to work
Digital mixers are extremely powerful; thus, they can seem intimidating. That’s not the case with the WING Rack. Like its full-blown console predecessor, it’s a breeze to navigate. Its interface centers around a 10.1-inch capacitive touchscreen that provides full access to all its functions and parameters — no tablet required. That said, Behringer still provides you with a suite of external remote control software for offline mixing on mobile and desktop. Regardless of how you take command, the WING Rack is completely configurable, enabling you to customize it to the way you want to work.
Sources make navigation simple
The WING Rack takes after its full-size predecessor in that it’s jam-packed with I/O — 374 inputs and outputs, to be exact. And if you include its internal signals, the WING Rack includes 400 inputs and outputs. Faced with this much I/O, Behringer’s engineering team reimagined the flow of a traditional mixer, putting the emphasis on your source audio, using what Behringer calls — quite fittingly — Sources. Within the WING ecosystem, inputs are much more than historical inputs because they contain metadata on what the Source is — tags, input icon, input color, gain, phantom power, and if the Source is mono, stereo, or mid-side. All that information follows the source to any channel. With one button, that information can be copied to the channel, and the tags, icon, color, and other metadata show up on the channel immediately. If you move a Source to another channel, the information goes with it — no need for old-fashioned copying and pasting.
Channels Redefined
With its strong focus on Sources, the Behringer WING Rack, available at Sadek Music, goes beyond the traditional definition of a channel. With an impressive 374 Sources available, a simple one-channel input just isn’t enough. That’s why the WING workflow reimagines what a channel can do.
Each of the 48 channels — comprising 40 inputs and eight returns — can operate in mono, stereo, or mid-side modes. When a stereo Source is assigned, the channel automatically switches to true stereo operation. Additionally, every channel includes an alternate (ALT) input, which can also be stereo, allowing seamless toggling between two Sources with ease and efficiency.
Loaded with top-shelf processing
Putting a pro-quality sheen on your mixes is easy with the Behringer WING Rack. A Standard FX rack with eight true-stereo processors supplies you with a useful array of modulation, EQ, and dynamics effects. Beyond that, you also get a Premium FX rack with eight true-stereo processors with sought-after algorithms from TC Electronic’s M3000 multi-effects processor and world-class effects from Lexicon, Quantec, and EMT. Forty stereo input channels boast built-in EQ and dynamics — some of which are modeled after famous hardware from legendary manufacturers like Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs. Finally, this digital mixer’s four main, eight matrix, and 16 stereo aux buses all feature dual inserts, 8-band parametric EQs, a stereo imager, and full dynamics processing.
Packed with Ample I/O and Limitless Expansion
The Behringer WING Rack, available at Sadek Music, comes loaded with extensive I/O and powerful expansion options, delivering exceptional flexibility for live and studio applications. It features 40 stereo input processing channels and eight stereo aux channels, while output processing includes 16 stereo aux buses, eight stereo matrices, and four stereo mains.
With three AES50 ports, you get plug-and-play remote I/O connectivity for up to 144 input and output signals. Additional connectivity includes AES/EBU stereo digital I/O, a front-panel headphone jack, MIDI I/O, and GPIO ports. For IEM setups, the WING Rack offers four extra rear-panel stereo outputs with high-performance headphone amplifiers.
Included is the WING-LIVE card, allowing up to 64 channels of 32-bit/48kHz audio to be recorded directly to dual SD or SDHC cards. Optional expansion cards can be added for Dante support, and the built-in 48-in/48-out USB audio interface makes the WING Rack an excellent studio companion as well.
Uncompromising design ensures top-shelf sound
When it comes to sound quality, the Behringer WING Rack doesn’t compromise. Its 40-bit floating-point processing at 48kHz or 44.1kHz with 1-millisecond round-trip latency yields the top-shelf sound you demand. Its 24 legendary Midas Pro mic preamps and eight Midas Pro XLR outputs ensure you capture high-quality sound. Need more? A built-in StageConnect interface adds 32 channels of low-latency I/O over a single XLR microphone cable. Using the WING Rack’s three AES50 networks, you can connect to 144 Sources. What’s more, the AES50 networks are compatible with Midas M32 and Behringer X32 mixers; join your current M32/X32 network, and you’re good to go. You can also add Dante for endless possibilities.
Behringer WING Rack Features:
- Boasts identical processing power, channel count, effects, expansion slots, and digital I/O to the full-size WING console
- 48-stereo-channel digital mixer with 40 stereo input processing channels and 8 stereo aux channels
- 28 stereo buses — 16 stereo aux buses, 8 stereo matrices, and 4 stereo mains
- 10.1-in. capacitive touchscreen provides full access to all features and parameters — no tablet required
- A suite of external remote control software facilitates offline mixing on mobile and desktop
- 24 Midas Pro mic preamps and 8 Midas outputs ensure you capture high-quality sound
- 3 AES50 ports provide plug-and-play remote I/O connectivity for up to 144 input and output signals
- AES50 networks are compatible with Midas M32 and Behringer X32 mixers
- 32-channel StageConnect interface for personal monitoring or analog I/O boxes
- Includes AES/EBU stereo digital I/O, a headphone connector, MIDI I/O, and GPIO ports
- 4 additional rear-panel stereo outputs with high-performance headphone amplifiers are tailor-made for IEM applications
- Compatible with Behringer and Midas digital snakes, including the S16, S32, SD8, SD16, DL16, and DL32
- WING-LIVE card captures up to 64 channels of 32-bit/48kHz audio to a pair of SD or SDHC cards
- Optional expansion cards supply Dante support
- Built-in 48-in/48-out USB audio interface
- Sources put the emphasis on your source audio rather than on your inputs and channels
- Apply names, icons, and colors to each Source for at-a-glance identification
- Each channel can be either mono, stereo, or mid-side — no channel linking required
- 16 true-stereo processors with FX from Pultec, SSL, SPL, Neve, Focusrite, dbx, Universal Audio, elysia, and Empirical Labs
- Space-saving 4U rackmount form factor
