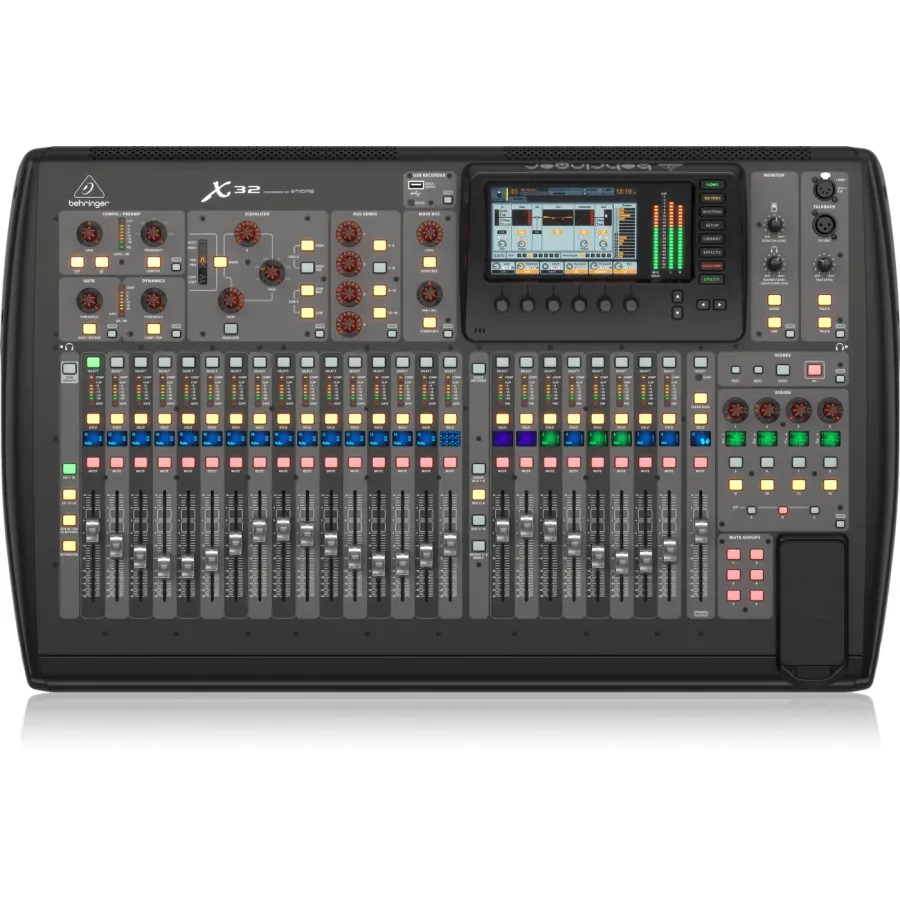

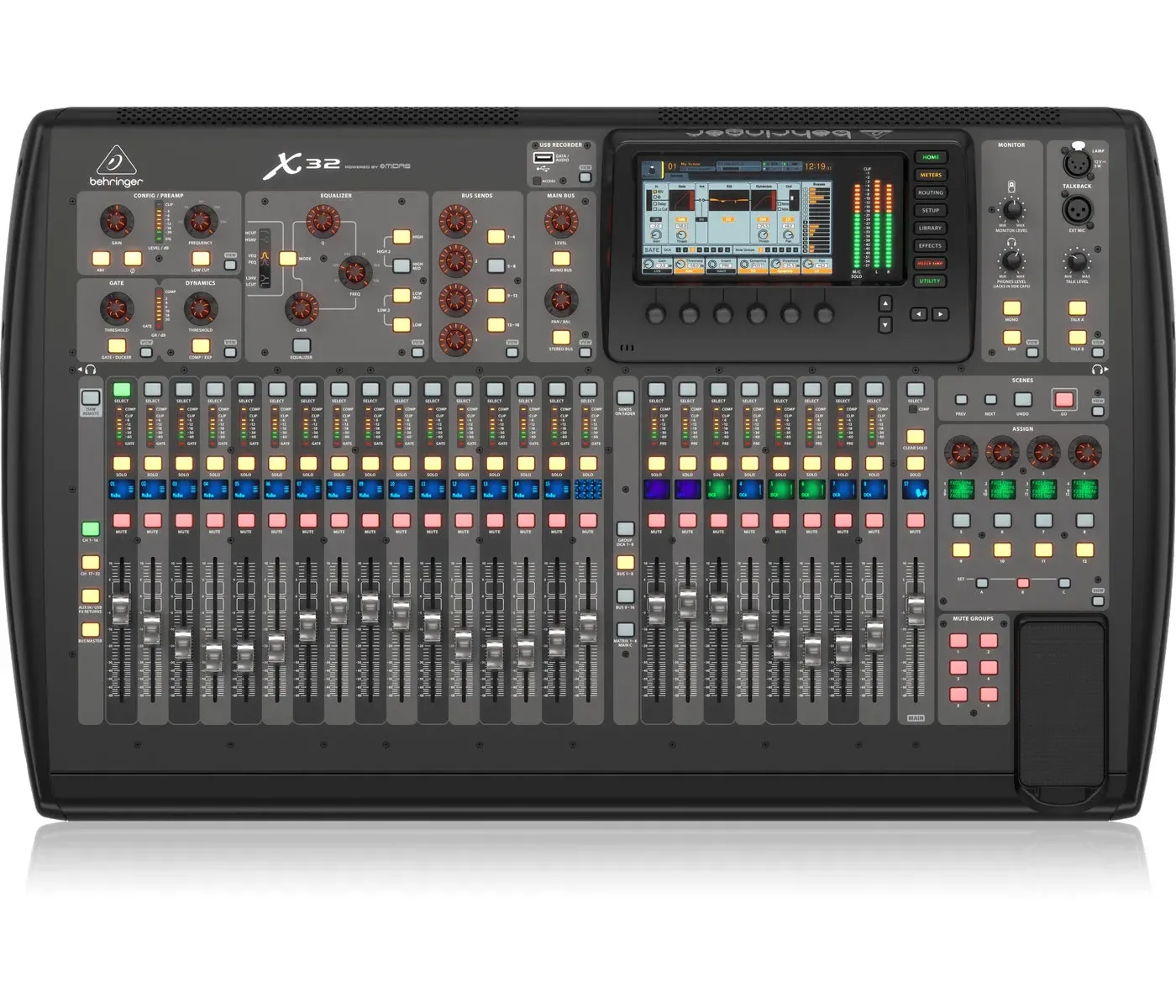

Behringer X32 40-channel Digital Mixer

40-input, 25-total-bus Digital Mixer with 32 Gain-Programmable Mic Preamps, 25 Motorized Faders, Virtual FX Rack, and 7" Color TFT :

Behringer X32: Live Digital Mixing Has Never Been Easier

Concentrate on your music, not a confusing mixer interface. The Behringer X32 digital mixer packs everything you need to easily mix and record a live show into a compact, roadworthy chassis. With its amazing-sounding Midas-designed mic preamps, the Behringer X32 is also great for the studio. Powerful and intuitive, the Behringer X32 sports 40 processing channels and 16 mix buses, giving you the flexibility you’ve always longed for. It comes equipped for 32-channel recording, with instant compatibility with major DAWs. Its serious signal processing can be quickly configured for sessions of any size. If you’re tired of negotiating an endless sea of encoders and menus, then it’s time you tried a new approach to digital mixing: the Behringer X32.

Behringer X32’s impressive I/O can tackle shows of any size

The Behringer X32 digital mixer boasts an impressive number of inputs and outputs for its compact size. Fitted with 32 great-sounding gain-programmable mic preamps, six 1/4" TRS aux inputs, 16 balanced XLR outs, plus balanced Control Room outputs on both XLR and 1/4" TRS connectors, the Behringer X32 lets you do large shows without fear of running out of I/O. A single Cat 5 cable from front of house to the stage can handle up to 48 channels of audio and deliver all bus outputs, along with 16 separate monitor feeds for Behringer’s optional P16-M Personal Monitoring System.

Great-sounding Midas-designed mic preamps

For the design of Behringer X32’s gain-programmable preamps, Behringer utilized Midas and Klark Teknik’s expertise to develop studio-quality mic preamps that deliver enhanced dynamic range, superior common mode rejection, and vanishingly low harmonic distortion (THD). These preamps sound amazing!

Instant compatibility with major DAWs

The Behringer X32 digital mixer comes with the X-USB recording interface card, which lets you record your tracks straight into your DAW. This convenience means that right out of the box, you have compatibility with Pro Tools, Logic, Cubase, Studio One, DP, and nearly any other ASIO or Core Audio–compatible DAW.

Onboard FX add a professional touch to your mixes

The Behringer X32 digital mixer sports an onboard virtual FX rack that gives you eight true-stereo (16 mono) multi-effects processors, including delay, chorus, and dynamics. The Behringer X32 can also run four studio-quality stereo reverbs together with eight channels of 31-band graphic EQ, eliminating expensive outboard hardware.

Comprehensive controls for a productive workflow

With Behringer’s X32 digital mixer, you can assign signals to eight DCA (digitally controlled amplifier) groups, with simultaneous group level control via dedicated 100mm motorized faders. The X32 has a talkback section (with built-in mic) that lets you communicate with the artists. The Behringer X32’s robust scene management lets you take snapshots of mixes that you can recall later. You can even save them to a USB thumb drive for later recall or use on another X32! What’s more, there’s a dedicated custom control section with user-definable knobs and buttons, so you can create customized sets of controls, making it simple and intuitive to access frequently used functions as you work.

v3 firmware and software updates bring exciting new features

With v3, the Behringer X32 digital mixer is more powerful than ever. Auto Mix enables automatic gain sharing, providing increased gain to your main speakers, while ducking open mics. This yields a better signal-to-noise ratio without any gating artifacts. Complete X-Touch integration allows direct control of volume, pan, EQ, FX, and more over Ethernet. Set up a full crossover without using a matrix mix. Reverse polarity on your outputs for easy speaker alignment. The Behringer X32-Edit app has been completely redesigned, with a new interface, full screen capabilities, floating windows, configurable fader layers, and more.

Behringer X32 Digital Mixer Features:

• 40-input, 25-total-bus digital mixer
• 16 mix buses, main LCR, 6 matrix buses
• Gain-programmable Midas-designed mic preamps deliver enhanced dynamic range and superior common mode rejection ratio (CMRR)
• Highly configurable, with up to 40 processing channels and 25 motorized faders
• USB flash connection allowing uncompressed recordings, storing show presets, and enabling system updates
• 6 independent matrix mix buses with inserts, 6-band parametric EQ, and dynamics processing
• Powerful scene management for easy handling of complex productions
• X-USB recording interface card included
• Support for optional Behringer P16-M Personal Monitoring System
• 48-channel digital snake ready (sold separately) via AES50 ports

v3 Firmware New Features:

• Auto Mix yields automatic gain sharing and mic ducking
• X-Touch integration allows direct control of parameters over Ethernet
• Set up a full crossover without using a matrix mix
• Reverse polarity on your outputs for easy speaker alignment
• Redesigned X32-Edit app features a new interface, full screen capabilities, floating windows, configurable fader layers, and more

Tech Specs

• Type:Digital
• Channels:40
• Inputs - Mic Preamps:32 x XLR
• Phantom Power:32 x Channels
• Inputs - Other:2 x RCA (Aux), 6 x 1/4" TRS (Aux)
• Outputs - Main:16 x XLR
• Outputs - Other:1 x AES/EBU, 2 x RCA (Aux), 6 x 1/4" TRS (Aux)
• Inputs - Digital:2 x AES50, 32 x USB (96 Total Channels)
• Outputs - Digital:1 x AES/EBU (XLR), 32 x USB, 2 x AES50 (32 via Optional Digital Snake)
• Aux Sends:16 x Aux Sends
• Send/Return I/O:6 x 1/4" TRS
• Busses/Groups:16 x Bus
• Channel Inserts:Virtual (Physical Assignable to AUX In/Outs
• Talkback:Yes
• Data I/O:Ethernet (X-Touch remote features), USB, MIDI I/O
• USB:1 x Type B, 2 x Type A
• Computer Connectivity:USB (32 x 32)
• I/O Expansion Slots:1 x Slot (Includes 32x32 USB Interface)
• Headphones:1 x 1/8"
• Faders:25 x 100mm (Motorized)
• EQ Bands:4-band Parametric (6-band on Mix Bus)
• Effects:Yes
• Transport Controls:via Assign Section
• DAW Control:Yes
