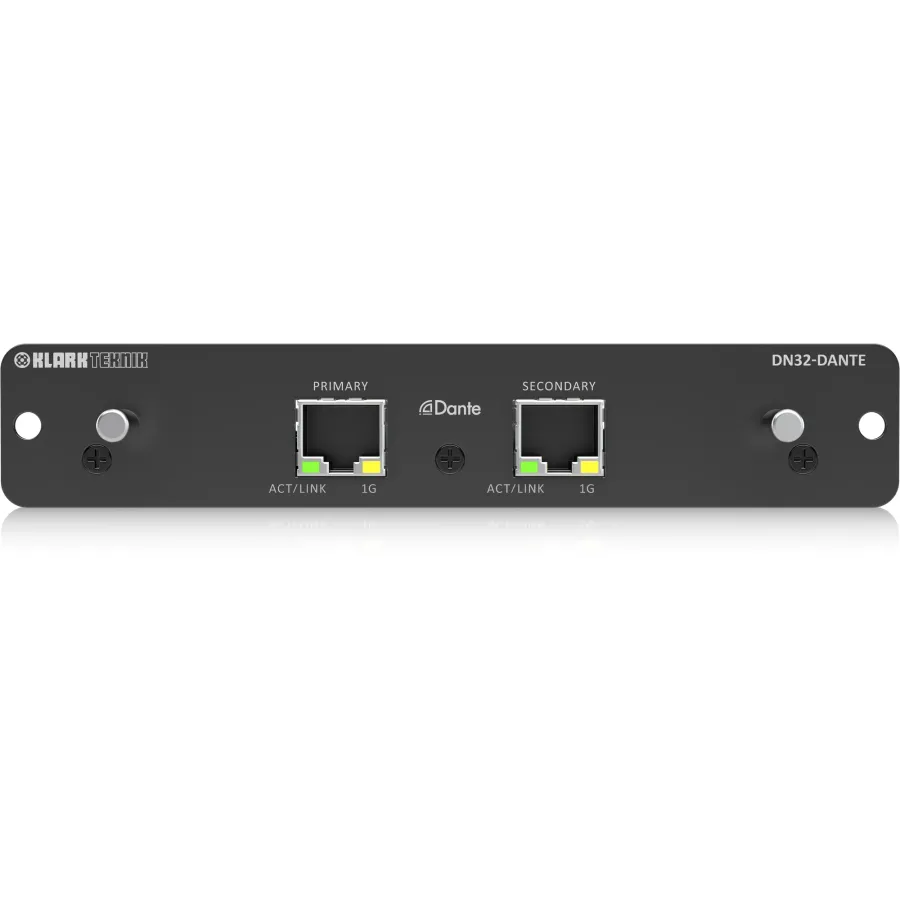

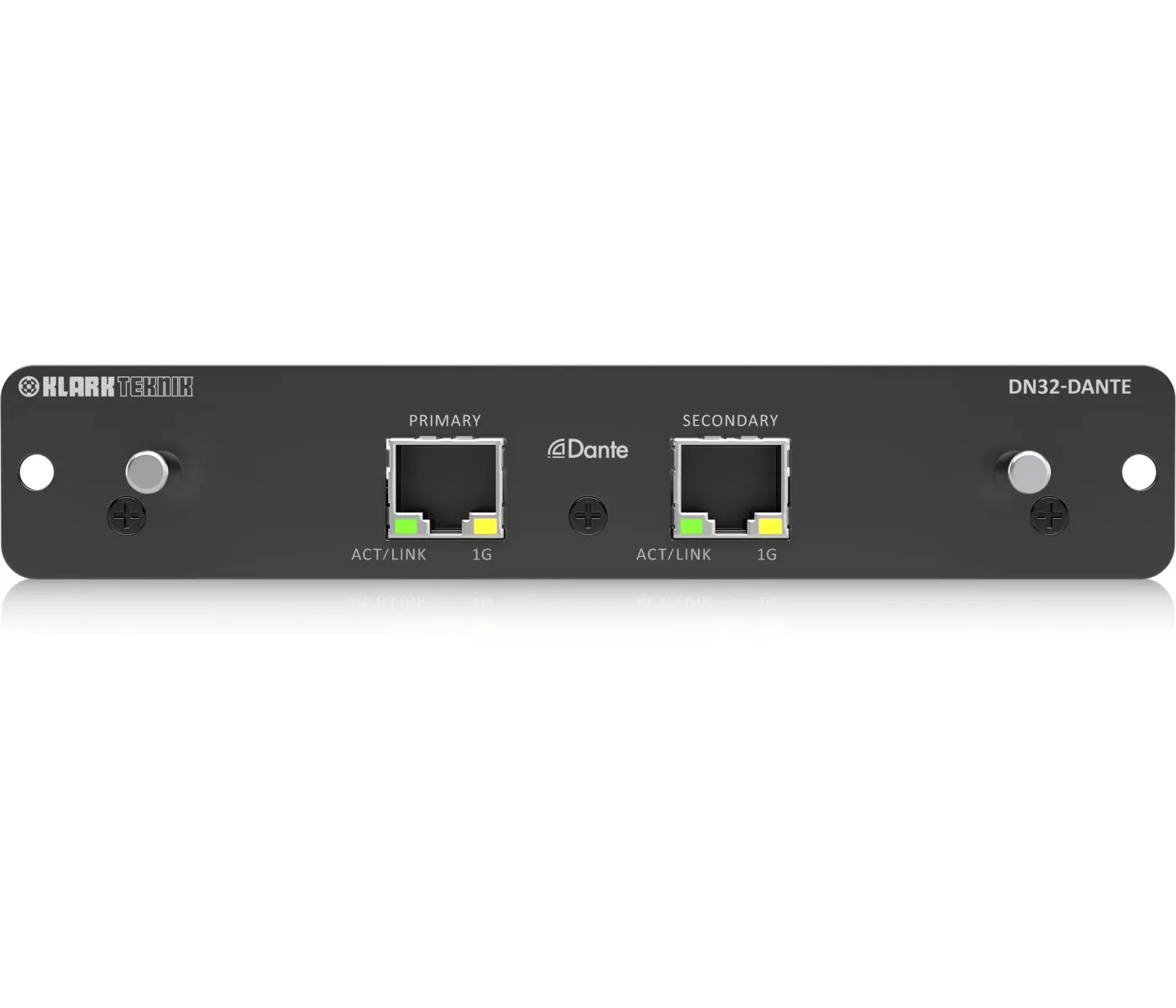

Klark Teknik DN32-DANTE 32x32-Channel Dante Expansion Module

Dante Expansion Module with up to 32 Channels of Recording and Playback for Midas M32 and Behringer X32 Digital Mixing Consoles :

DN32-DANTE

The DN32-DANTE expansion card brings powerful networked audio capabilities to your Midas M32 or Behringer X32 mixing console, delivering up to 32 channels of bidirectional audio over Dante-enabled IP networks. Designed for seamless integration, this card is perfect for modern installations and live sound environments that demand flexibility and scalability.  Built on proven IT standards, Dante enables uncompressed, multichannel digital media networking with ultra-low latency and precise synchronization. By utilizing your existing IP network infrastructure, Dante simplifies complex audio routing and enhances system interoperability. It’s no wonder that Dante has become the go-to solution for professional audio manufacturers worldwide.  Get the DN32-DANTE and unlock next-level audio networking — available now at Sadek Music.

Connectivity and Redundancy

The DN32-DANTE expansion card brings powerful Dante networking to your Midas M32 or Behringer X32 mixing console, delivering up to 32 channels of bidirectional audio over a Dante-enabled IP network. Available now at Sadek Music, this card is a must-have for studios, live sound, and installations looking for scalable, high-performance audio networking.  The DN32-DANTE features two Gigabit Ethernet ports connected via an internal switch, allowing simultaneous merging of Ethernet remote control data and multichannel audio streams over a single cable. When both primary and secondary ports are connected, the secondary provides a redundant failover connection, automatically activating if the primary becomes unavailable — ensuring uninterrupted performance in mission-critical environments.

Built on robust IT standards, Dante enables uncompressed digital audio, low latency, and tight synchronization, all over Gigabit or 100 Mbit/s network infrastructure. For optimal performance, be sure to use QoS-capable switches. Visit www.audinate.com for a list of recommended devices. Elevate your setup with the DN32-DANTE — available now at Sadek Music.

Clock Synchronisation and Routing

The DN32-DANTE card features a high-precision word clock that can serve as the clock master for the Dante network and your console. Alternately, the console can provide the master word clock that is distributed to the Dante network. Dante supports Unicast and Multicast flows and allows for signal routings on a per-channel basis. All routings and device parameters can be controlled from anywhere in the network, and are exclusively made using the Dante Controller application, which is available free of charge at www.audinate.com.

Computer Audio Interface Option

The Dante Virtual Soundcard application for PC and Mac transforms your personal computer into a powerful Dante-enabled device. Now available through Sadek Music, this software solution lets you stream audio to and from Dante-equipped gear over a standard IP network — perfect for remote recording, virtual soundchecks, or multitrack playback.  With support for up to 64 channels, you can effortlessly record live performances by pulling audio from multiple mixing consoles simultaneously. Whether you're working in a studio or capturing audio at a live event, Dante Virtual Soundcard makes it easy to integrate your computer into a Dante audio network without the need for additional hardware.

Windows WDM and ASIO, and Mac OS X Core Audio are supported to ensure low-latency signal handling by your PC. The Dante Virtual Soundcard application is optionally available at www.audinate.com.

Product Features:

• Audinate Dante* expansion module for Midas and Behringer digital consoles

• Up to 32 bidirectional channels @ 48 kHz

• Enables multichannel recording and playback via Dante Virtual Soundcard* (PC or Mac* computer)

• Primary and secondary Ethernet interfaces for dual-redundant Dante networking

• Operates from internal Dante network Precision Time Protocol (PTP) clock

• Optional Dante Controller software for remote configuration (PC or Mac* computer)

• LED indicators monitor network activity and speed
