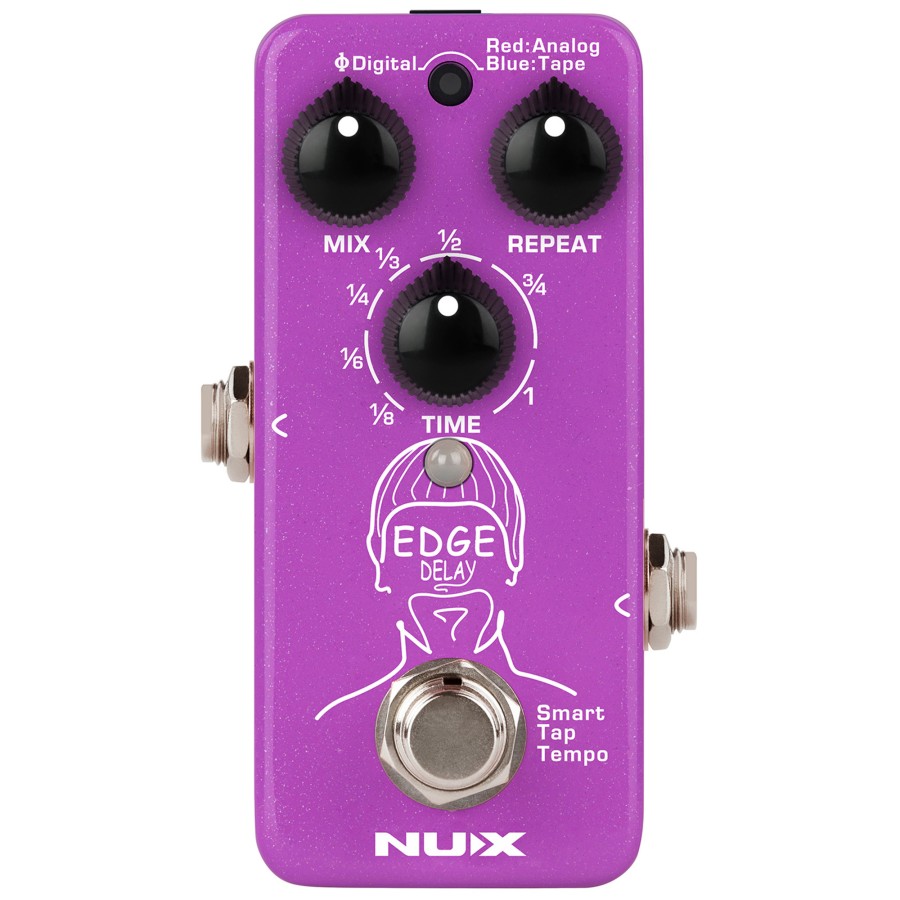

NUX NDD-3 Edge Delay Pedal Effects - 3 Years Warranty

SUB-DIVISION WITH SMART TAP TEMPO

Available now at Sadek Music, where you can explore innovative effects that push your sound further! . DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay. Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)

A USB-C port is provided for occasional firmware updates. Connect the USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software.

Features

• 3 delay types in a mini enclosure.
• Phi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.
• Analog Delay: BBD Warm sound with natural treble decay.
• Tape Echo: High-frequency saturation and low-end decay.
• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass (Trails).
• Supports Stereo I/O with TRS Cable.
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency.

Specifications

• Input Impedance: 1M?
• Output Impedance: 10k?
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48 kHz / 24-bit
• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: less than 100mA
• Dimensions: 94(L)X51(W)X53(H) mm
• Weight: 175g
