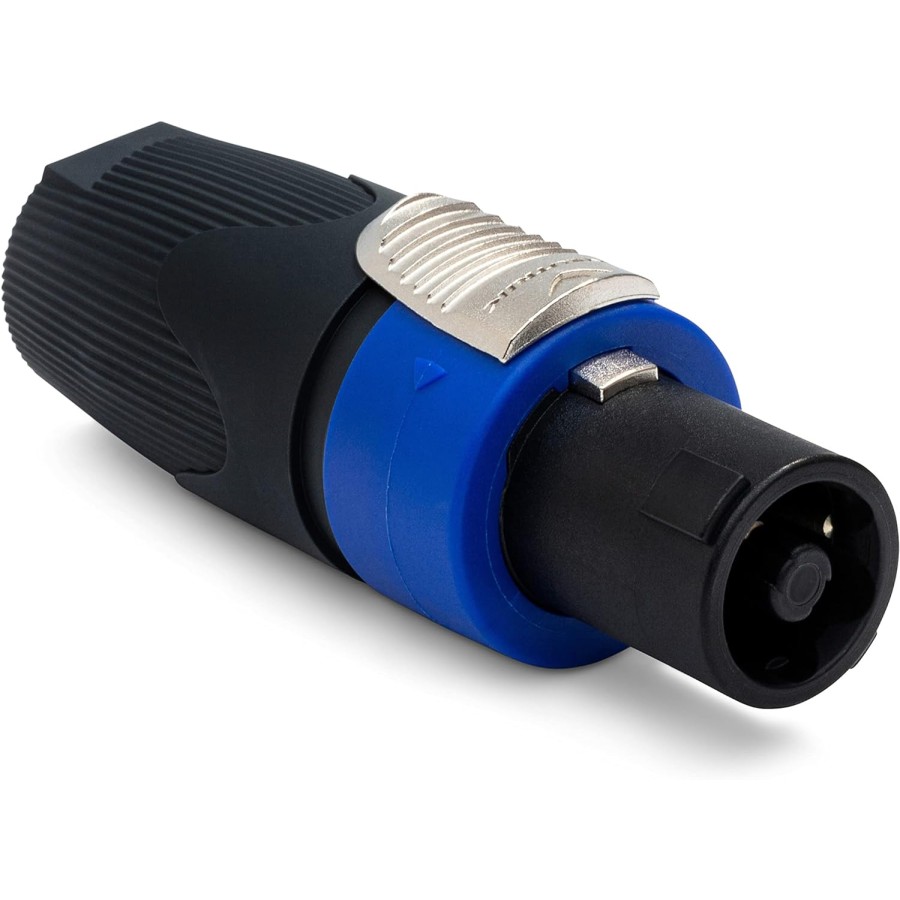

Neutrik NL4FX Speakon Cable Connector

Female Cable Mount Connector

The Neutrik NL4FX 4-Pole Female speakON Cable Connector is a 4 pole cable connector with chuck type strain relief and dark gray bushing.

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Neutrik NL4FX Features

• Current rating 40 A rms continuous
• Up to 50 A audio signal, duty cycle 50%
• Only 3 parts, easy to assemble
• High impact materials - long-lasting and reliable
• Easy and extremely precise locking system "Quick Lock"
• Improved grip on latch
• 1 piece strain relief, chuck for 7 to 14.5 mm cable O.D.
• Color coding possible
• Improved screw-type termination for highest pull-out force
• Integrated design guarantees "Made by Neutrik®"

Tech Specs

• Type:Cable Connector
• Connector Type:SpeakON (female)
• Signal Type:Audio
• Connectivity:Solder Contacts or Screw-in Contacts
• Balanced:No
• Locking:Yes
• Wire Gauge:12 AWG max wire size (0.393" max cable size)
• Current Rating:40A continuous
