ZOOM LiveTrak L6 10-Track Digital Mixer / Recorder

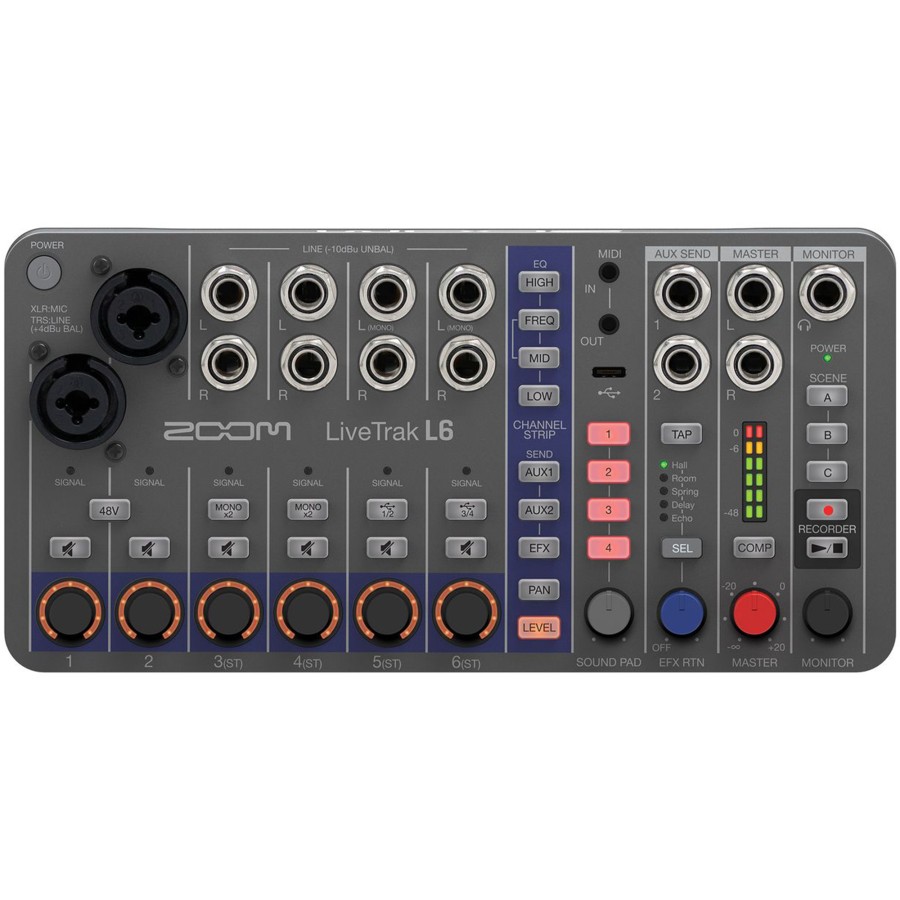

Small just got very big - The LiveTrak L6 is our most compact and portable digital mixer / recorder. With 10-tracks of studio quality audio, effects, MIDI, and sound pads, it’s perfect for bands, synth players, live streaming, and more.

PLENTY OF INPUTS

A. INPUTS | 2 XLR/TRS combo inputs plus 4-stereo ¼” inputs.
B. MONO x2 | Get two additional mono inputs instead of a stereo input.
C. USB RETURN | USB Audio Return for backing tracks and other audio from a laptop.

THE RIGHT OUTPUTS

A. AUX OUTPUTS | Send custom mixes to monitors, effects, or external devices.
B. MAIN OUTPUTS | Connect to studio monitors or live speakers
C. HEADPHONE OUTPUT | Headphone output with volume control.

LOADED WITH EFFECTS

Enhance your mix with onboard effects including 3 Reverbs, Delay, and Echo

ADVANCED COMPRESSOR

The L6’s main output compressor increases loudness while adding natural saturation. With 32-bit float the audio will never clip, even at high volume.

LED CONTROL KNOBS

Adjust levels and parameters quickly and precisely with the LED control knobs.

SOUND PADS

Trigger pre-recorded backing tracks or samples using one of the four sound pads. You can also sample in real time for live jams and performances.

FEATURES:

• 10-channel ultra-Compact digital mixer
• 2 XLR/TRS Combo inputs + 4-Stereo inputs
• 12-track simultaneous recording
• MIDI In/Out for mixer control and USB MIDI interface
• 3 Scene memory for storing mixer and tempo setting
• 32-bit float multi-track recording to micro SD card
• 5 Internal Send Effects
• 2 AUX send outputs
• 4 Assignable sound pads (sample player)
• 3-Band EQ with MID freq control for each channel
• Headphone output + Master output
• Eurorack compatible
• 12-in / 4-out Audio interface
• 4 AA battery power operation or USB power

TECH SPECS

Input and output channels:
Inputs

• MIC/LINE (mono): 2
• LINE (stereo): 4

Outputs

• AUX SEND (mono): 2
• MASTER (stereo): 1
• MONITOR (stereo): 1

Inputs:
MIC/LINE

• Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input gain: Adjustment unnecessary (dual A/D converter circuits used)
• Input impedance: XLR: 3.8 kΩ or more
• TRS: 39 kΩ or more
• Maximum input level: XLR: +4 dBu, TRS: +24 dBu
• Phantom power: +48 V, Channel total of 10 mA or less

LINE

• Connectors: 8 TS phone jacks (balanced)
• Input impedance: 10 kΩ
• Maximum input level: +9 dBu

Outputs:
AUX SEND

• Connectors: 2 TRS phone jacks (impedance balanced)
• Maximum output level: +9.5 dBu
• Output impedance: 147 Ω

MASTER

• Connectors: 2 TRS phone jacks (balanced)
• Maximum output level: +15 dBu
• Output impedance 147 Ω

MONITOR

• Connector: TRS phone jack
• Maximum output level: 50 mW + 50 mW (63 Ω load)
• Output impedance: 14.7 Ω

Buses

• MASTER: 1
• AUX SEND: 2
• SEND EFX: 1

Channel strip EQ

• HIGH: 10 kHz, ±15 dB, shelving
• MID: 100 Hz – 8 kHz, ±15 dB, peaking
• LOW 100 Hz, ±15 dB, shelving

Level meters

• 6 segments

Send effects

• 5 types

Recorder

• Maximum simultaneous recording tracks: 12
• Maximum simultaneous playback tracks: 2
• Recording formats: 48kHz, 32-bit float, mono/stereo WAV
• Recording media: microSDHC memory cards (Class 10 or higher), microSDXC memory cards (Class 10 or higher)
  See the ZOOM website (zoomcorp.com/help/l6) for information about microSD cards that have been confirmed to work with this unit. https://zoomcorp.com/help/l6

Audio interface

• Input and output channels:
• Input: 12 channels
• Output: 4 channels
• Sampling frequency: 48 kHz
• Bit depth: 32-bit float / 24-bit
• Interface: USB 2.0

Card reader

• Class: Mass storage class USB 2.0 High Speed

Sampling frequency

• 48 kHz

Frequency response

• 20 Hz – 20 kHz / -1.0 dB

Equivalent input noise

• -120 dBu or less (IHF-A) at 150 Ω input

Power

• 4 AA batteries (alkaline, lithium, or rechargeable NiMH)
• AC adapter (ZOOM AD-17): DC 5V/1A
• USB bus power is supported

Estimated continuous recording time using batteries. These values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

• 12-track recording, phantom power off, headphones used (63Ω load), no MASTER output connections
• Alkaline batteries: about 3 hours
• NiMH batteries (1900 mAh): about 3.5 hours
• Lithium batteries: about 7 hours

Power consumption

• 5 W maximum
